Dryer Wiring Sheet:
https://t2m.io/9bJGmss

Gas and Electric Dryer Service Manual
https://t2m.io/4322260

Cross Reference Information
Part Number WPW10185982 (AP6016541) replaces PS11749831, W10185982, WPW10185982VP.

Cross Reference and Model Information

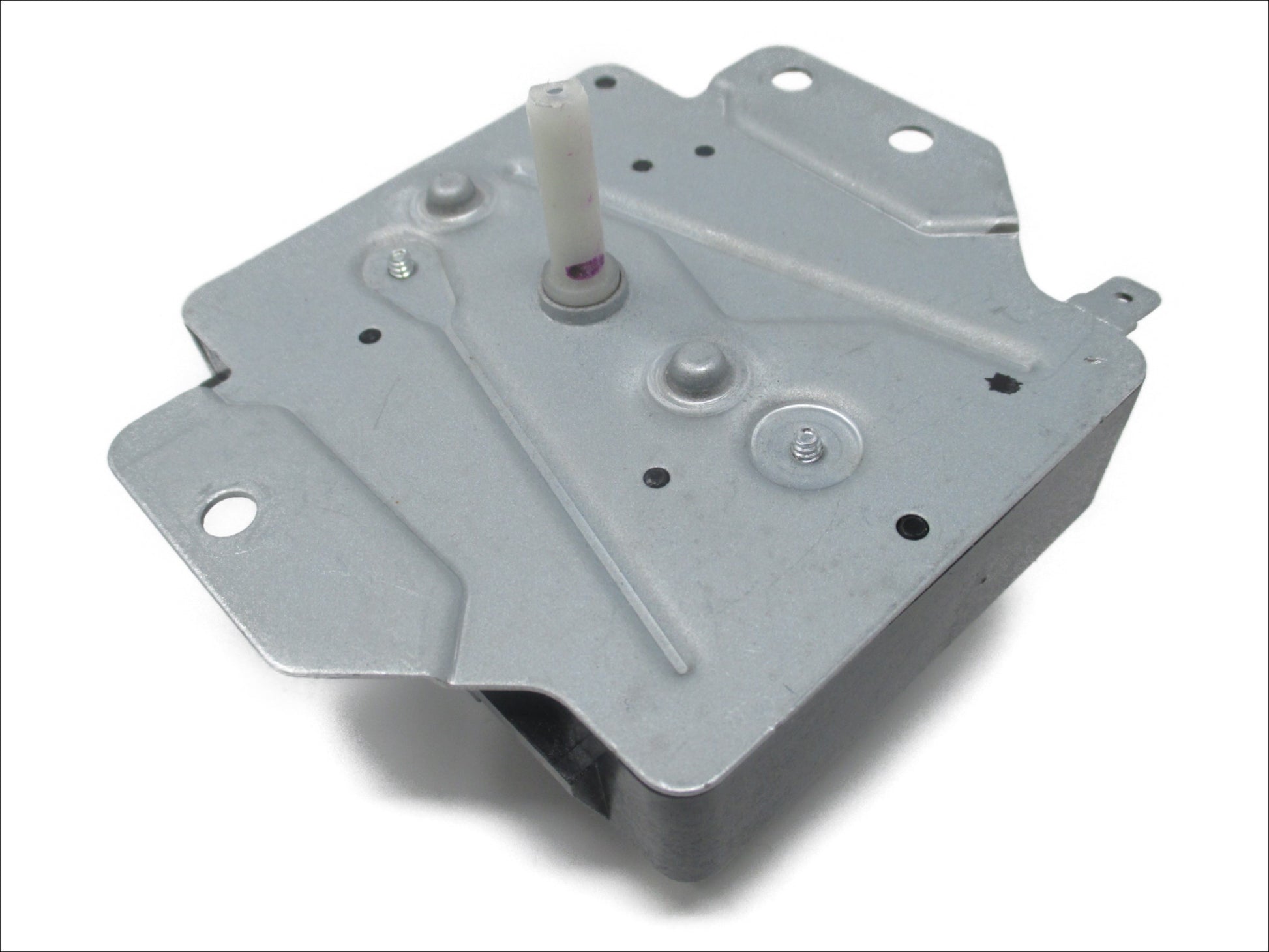

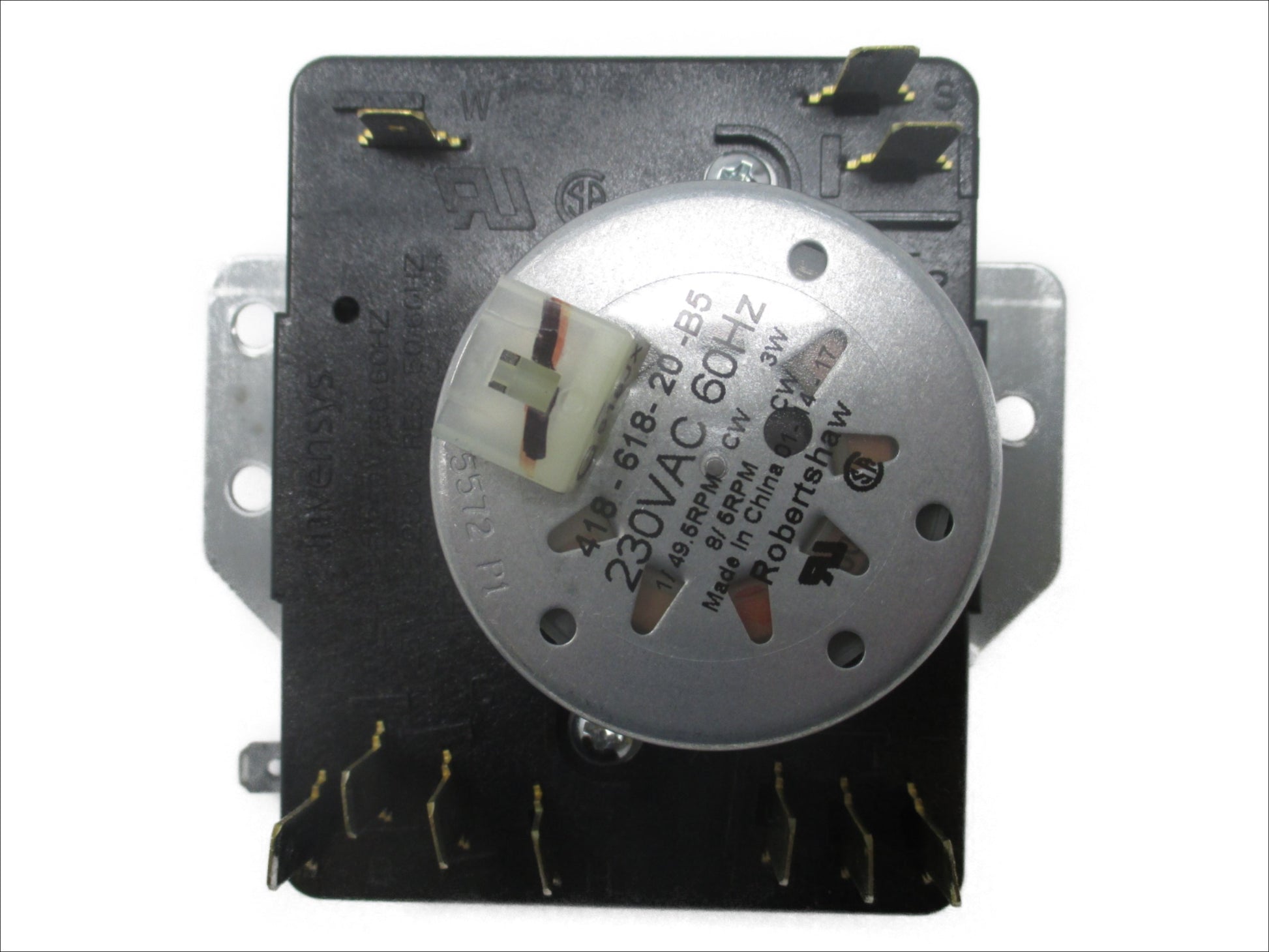

Timer
Part Number: AP6016541

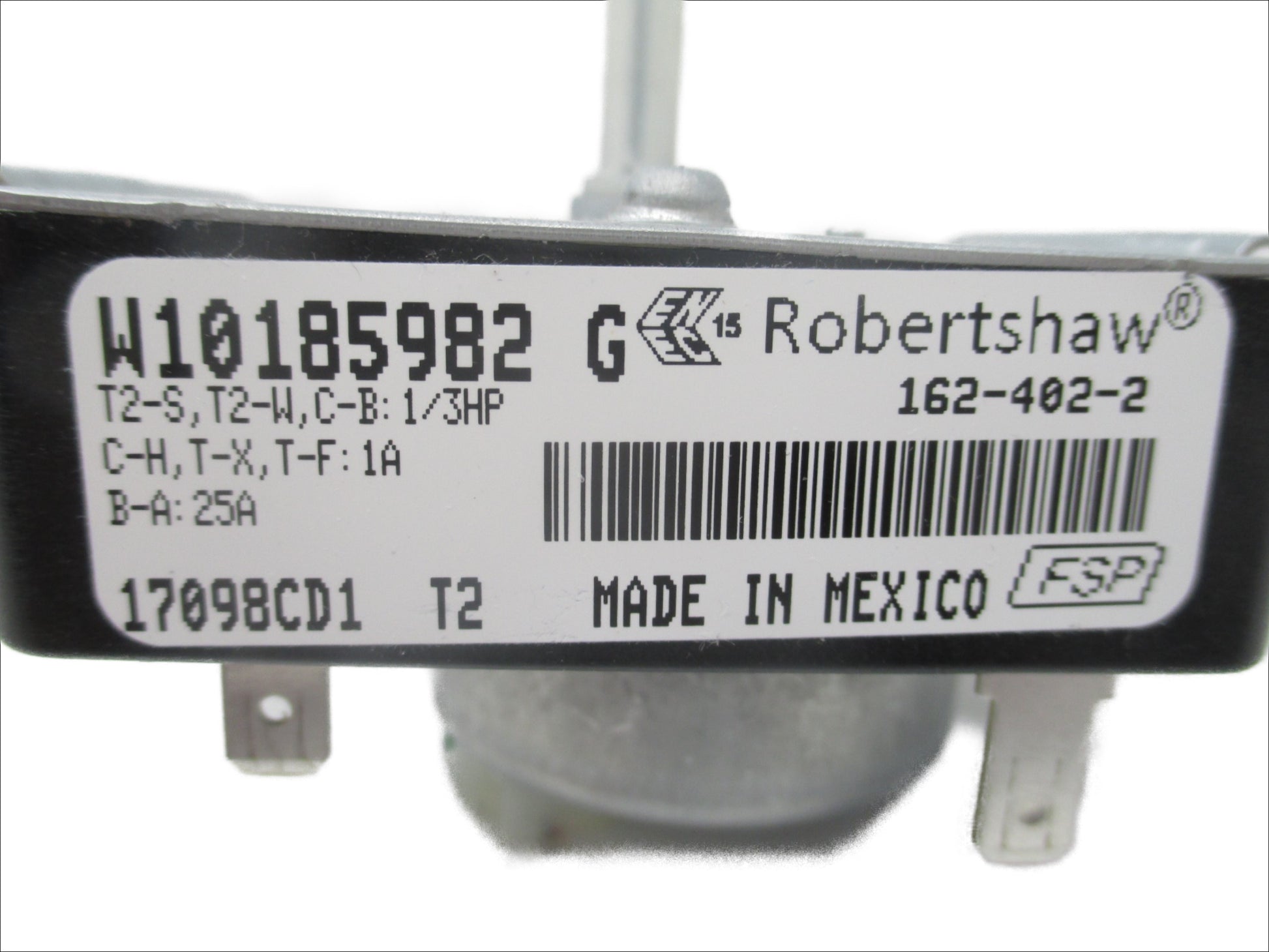

Manufacturer's Part Number: WPW10185982
Manufacturer Model Number Description
Whirlpool 1CWED5100VQ1 29"ELECTRIC DRYER
Whirlpool 1CWED5200VQ1 29" ELECTRIC DRYER
Whirlpool 7EWED1510YM0 29" ELECTRIC DRYER
Maytag 7MMEP0080WW0 29" ELECTRIC DRYER
Maytag 7MMEP0080WW1 29" ELECTRIC DRYER
Whirlpool CEDS1043VQ1 29" ELECTRIC DRYER
Whirlpool CEDS832VQ1 29" ELECTRIC DRYER
Whirlpool IV86001 29"ELECTRIC DRYER
Whirlpool IV87001 29"ELECTRIC DRYER
Maytag NED4800VQ1 29" ELECTRIC DRYER
Whirlpool WED4800XQ0 DRYER
Whirlpool WED4850XQ0 29" ELECTRIC DRYER
Whirlpool WED4910XQ0 29" ELECTRIC DRYER
Whirlpool WED4910XQ1 29`` ELECTRIC DRYER
Whirlpool WED4910XQ2 29`` ELECTRIC DRYER
Whirlpool WED5100VQ1 29"ELECTRIC DRYER
Whirlpool WED5200VQ1 29" ELECTRIC DRYER
Whirlpool WED5510VQ1 29"ELECTRIC DRYER
Whirlpool WED5790VQ1 29" ELECTRIC DRYER
Whirlpool WGD4800XQ0 DRYER
Maytag YNED4800VQ1 29" ELECTRIC DRYER
Whirlpool YWED4800XQ0 29" ELECTRIC DRYER
Whirlpool YWED4800XQ1 29`` ELECTRIC DRYER
Whirlpool YWED4800XQ2 29`` ELECTRIC DRYER
Whirlpool YWED5200VQ1 29" ELECTRIC DRYER
