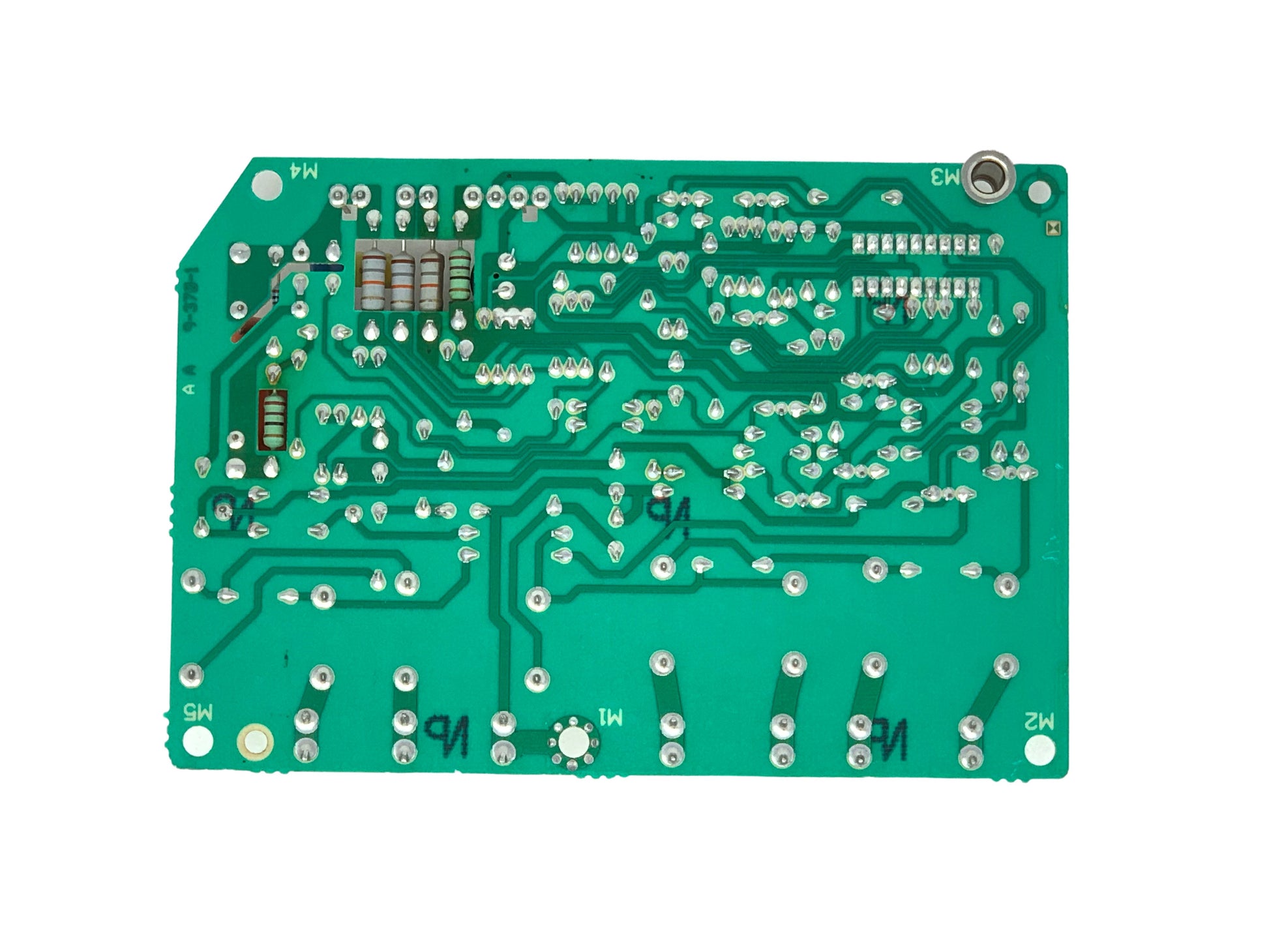

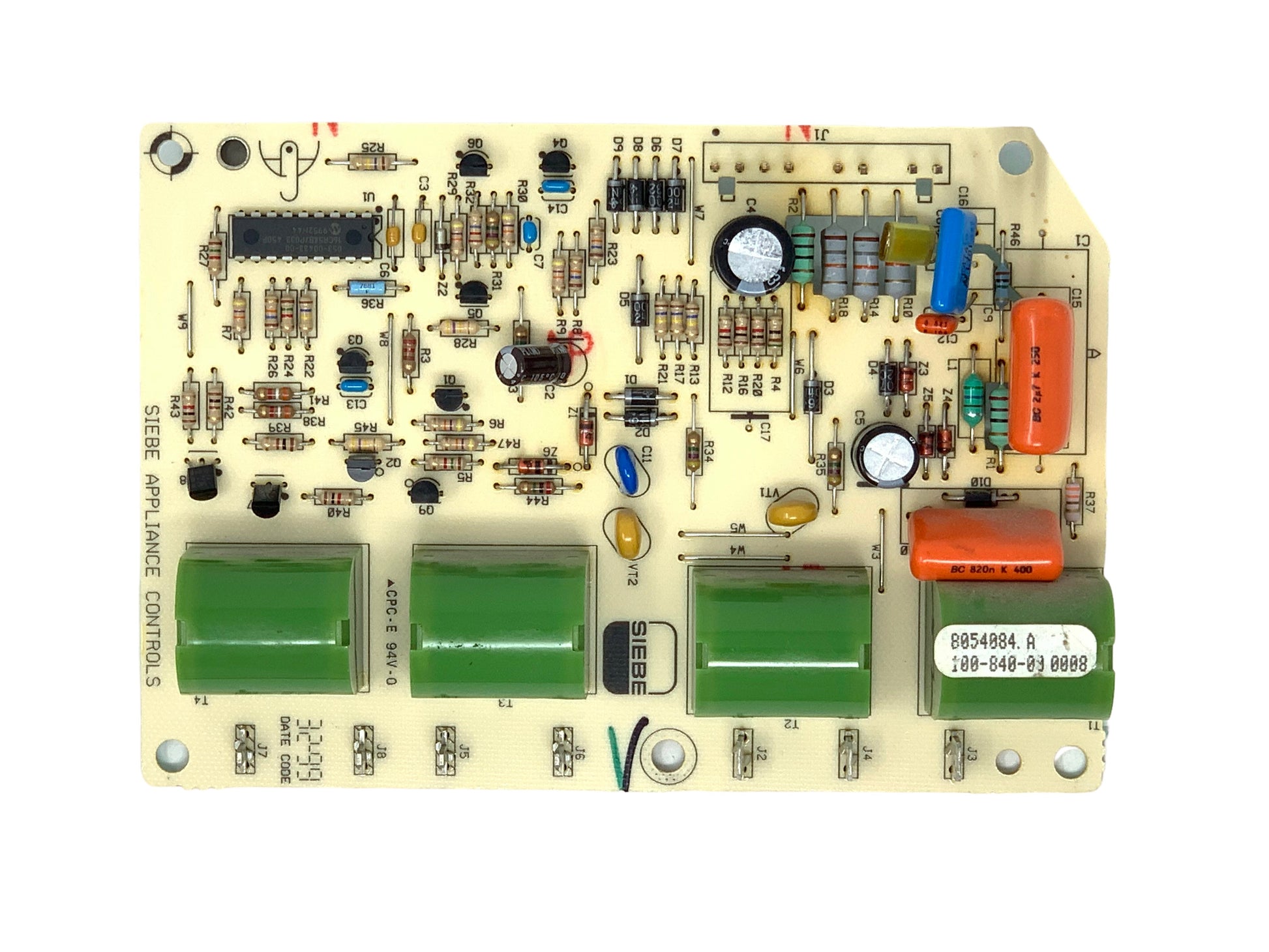

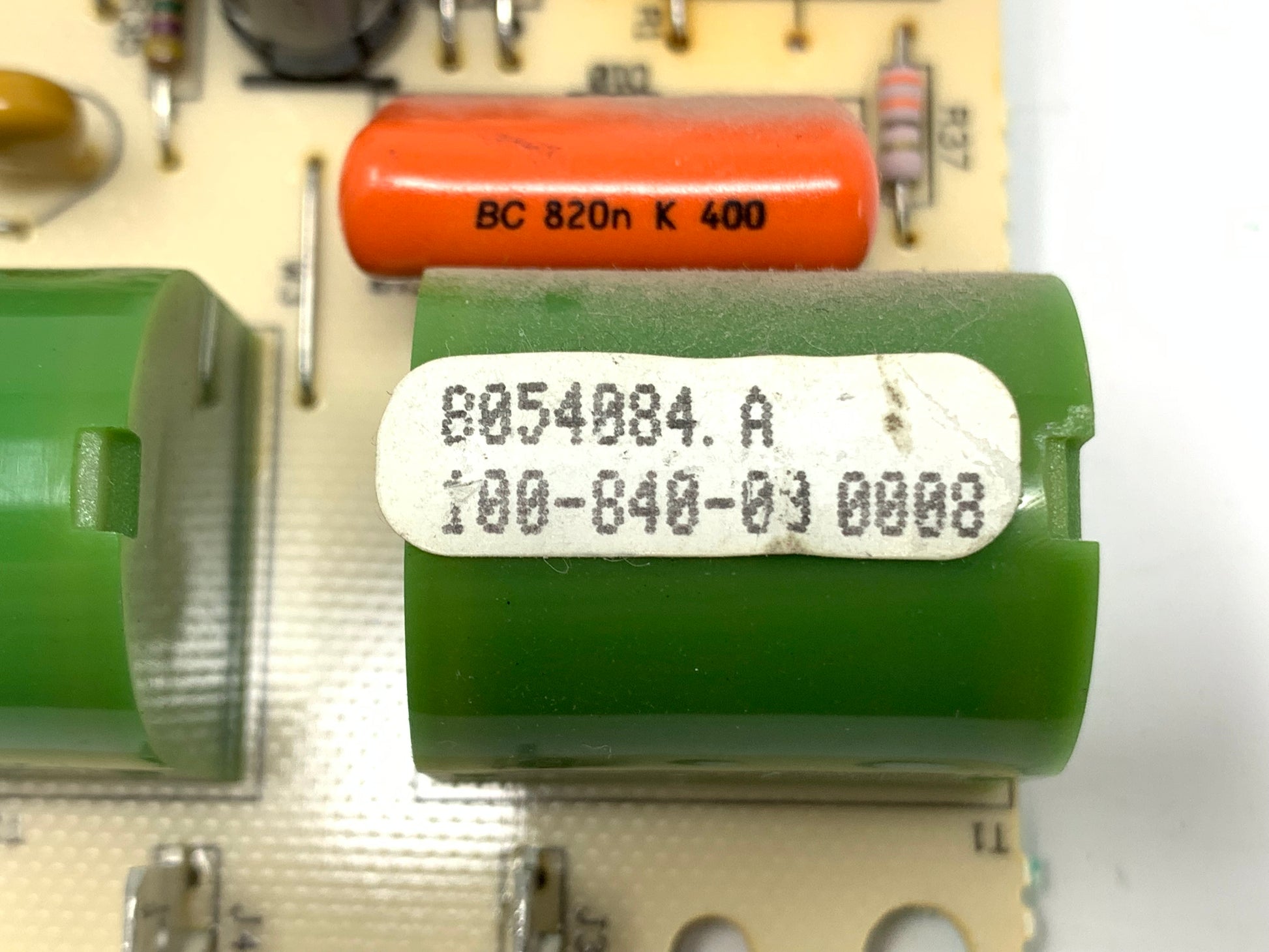

8054084 Whirlpool Stove Spark Module Box Board ⚡2 Year Warranty ⚡ Fast Shipping⚡

  • 7799


This is not the spark GENERATING module. That is a different part. Other components also affect the stove lighting correctly. Please consult the following sources to diagnose the problem you are having:

Diagnosing No Spark on the Stove Top:
https://drive.google.com/open?id=1onEA6uMyVBYUfnOLQusHzkxeIz4SVDZG

Gas Freestanding Ranges with Direct Spark Ignition (DSI) Control
https://drive.google.com/open?id=1xNa3ZGTlYmNMbeJYSPDEFXCbOMLcMbOX

Service Manual (55-65):
https://drive.google.com/open?id=0B7gi0OF2e_Lodk5zRTNua3lqMlk

Tech Sheet:
https://drive.google.com/open?id=0B7gi0OF2e_LoUmFBNmJQZTdxYjg

Cross Reference Information
Part Number WPW10331686 (AP6019728) replaces W10331686, 8054084, 8273970, 8273972, 8273977, 8522964, 9758080, 9758080R, PS11753037, WPW10331686VP.
