Service Manual:
https://t2m.io/16025644

User Control Instructions:
https://t2m.io/7601P508-60user

Cross Reference Information

Part Number WP12001628 (AP6005415) replaces 12001628, 100-01184-00, 12001624, 74003485, 74003486, 74003487, 74003625, 74003626, 74003676, 74003714, 74003715, 74003734, 74003735, 74003736, 74006239, 74007516, PS11738462.



Cross Reference and Model Information

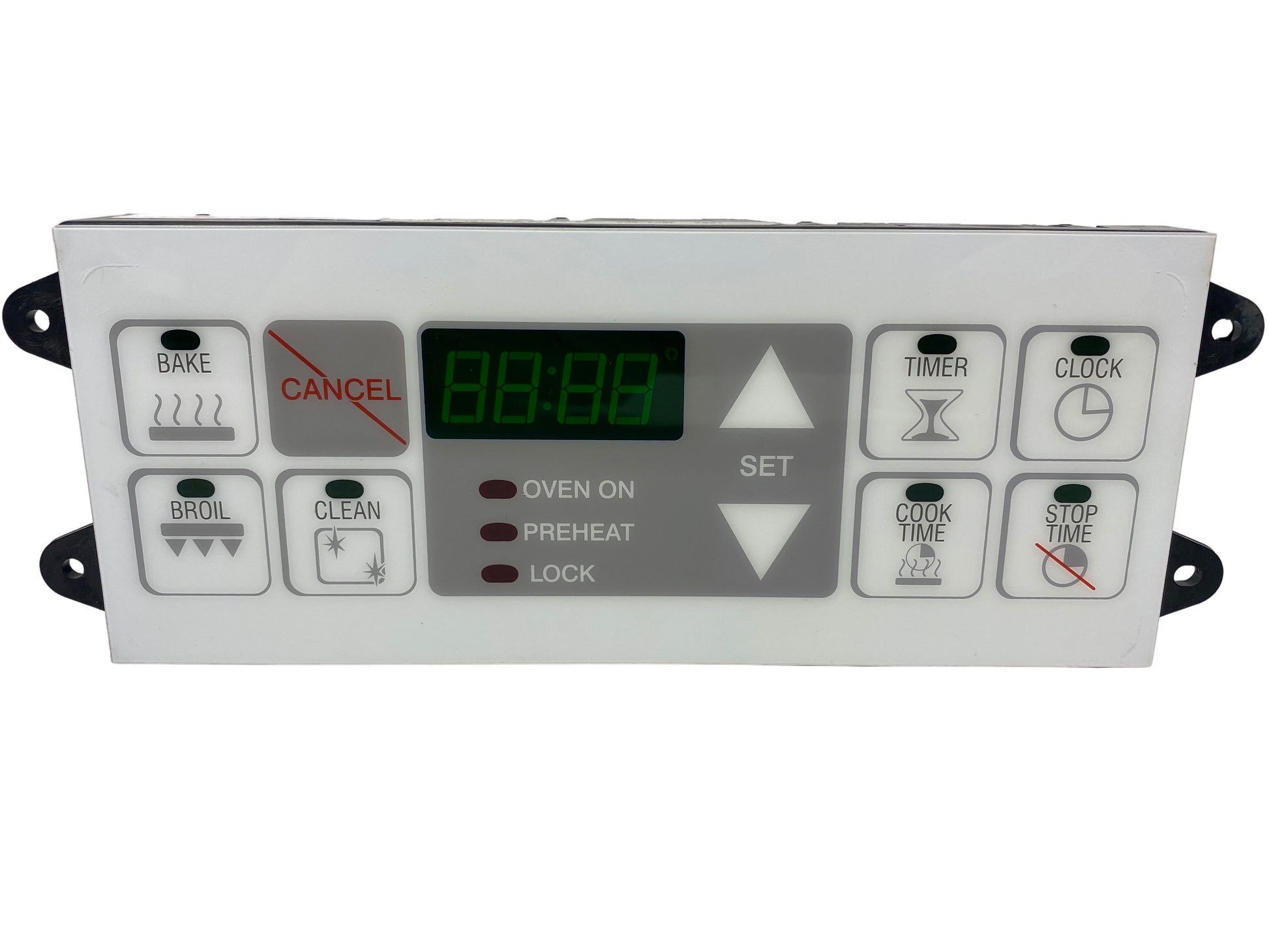

Clock Assembly
Part Number: AP6005415
Manufacturer's Part Number: WP12001628
.


Manufacturer

Model Number

Description

Maytag MER5730AAW RANGE- S/C F/S ELE
Maytag MER5530AAW RANGE- S/C F/S ELE
Maytag MER5710AAW RANGE- S/C F/S ELE
Maytag MER5750AAW RANGE- S/C F/S ELE
Magic Chef CER3540AAW RANGE- S/C F/S ELE
Maytag MER5530AAH RANGE- S/C F/S ELE
Maytag MER5730AAA RANGE- S/C F/S ELE
Maytag MER5530AAT RANGE- S/C F/S ELE
Maytag MER5750AAA RANGE- S/C F/S ELE
Magic Chef CER3540AAH RANGE- S/C F/S ELE
Magic Chef CER3540AAL RANGE- S/C F/S ELE
Magic Chef CER3540AAA RANGE- S/C F/S ELE
Maytag MER5530AAL RANGE- S/C F/S ELE
Magic Chef CER3540BAW RANGE- S/C F/S ELE
Magic Chef CER3740AAL RANGE- S/C F/S ELE
Maytag MER5730AAH RANGE- S/C F/S ELE
Maytag MER5730AAL RANGE- S/C F/S ELE
Maytag MER5755AAW RANGE- S/C F/S ELE
Magic Chef CER3760BAH RANGE- S/C F/S ELE
Magic Chef CER3760BAW RANGE- S/C F/S ELE
Magic Chef CER3540AAT RANGE- S/C F/S ELE
Magic Chef CER3760BAT RANGE- S/C F/S ELE
Magic Chef CEW3330AAB WALLOVEN- S/C ELE
Magic Chef CEW3330AAW WALLOVEN- S/C ELE
Amana DCF4205BK RANGE- S/C F/S ELE
Amana DCF4205BT RANGE- S/C F/S ELE
Magic Chef DF454670 ELECTRIC RANGE
Magic Chef DF454677 ELECTRIC RANGE
Magic Chef DF456570 ELECTRIC RANGE
Magic Chef DF456577 ELECTRIC RANGE
Jenn-Air JER8500AAA RANGE- S/C F/S ELE
Jenn-Air JER8500AAW RANGE- S/C F/S ELE
Jenn-Air JER8530AAW RANGE- S/C F/S ELE
Maytag MER5750AAB RANGE- S/C F/S ELE
Maytag MER5755AAB RANGE- S/C F/S ELE
