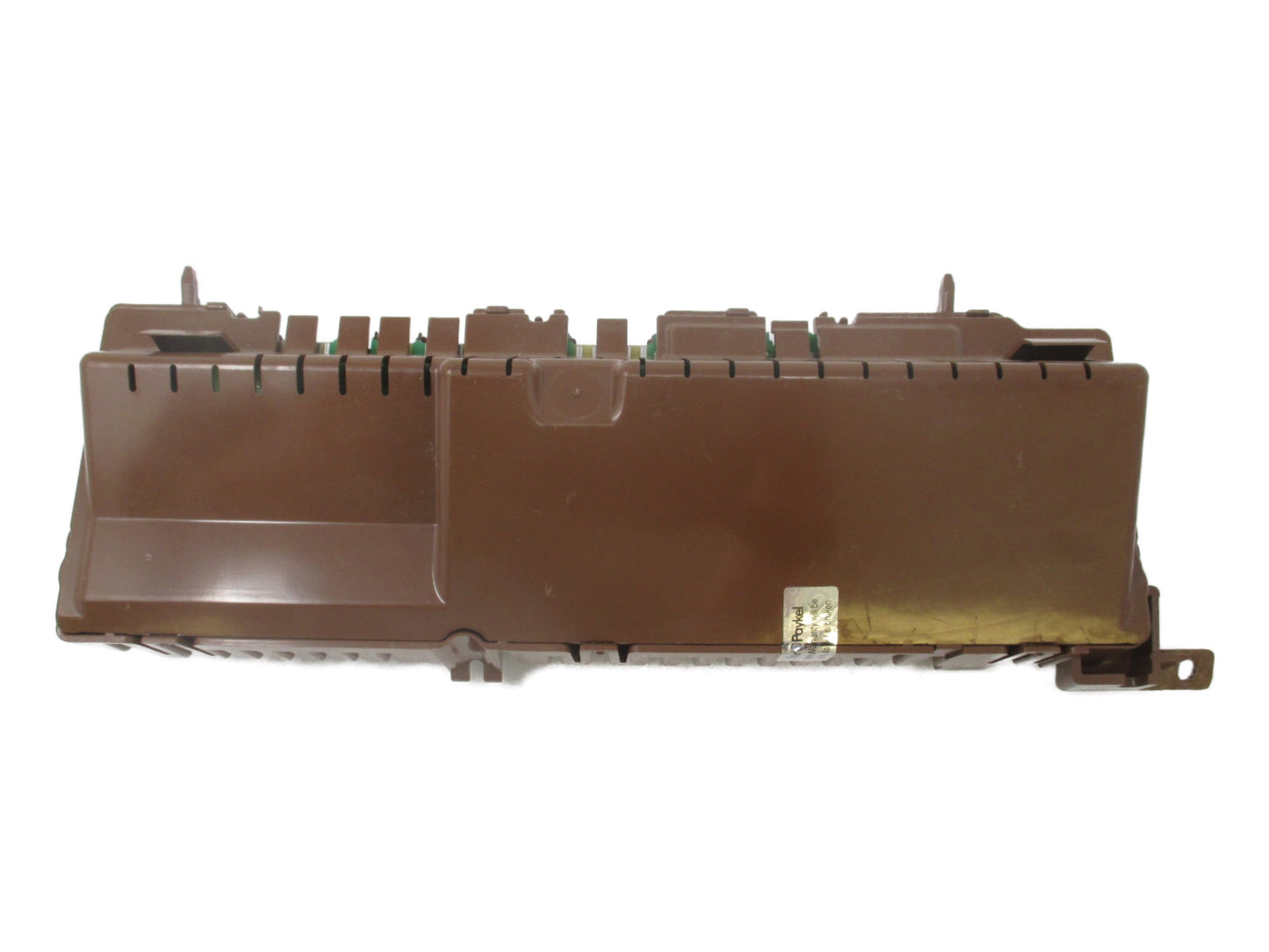

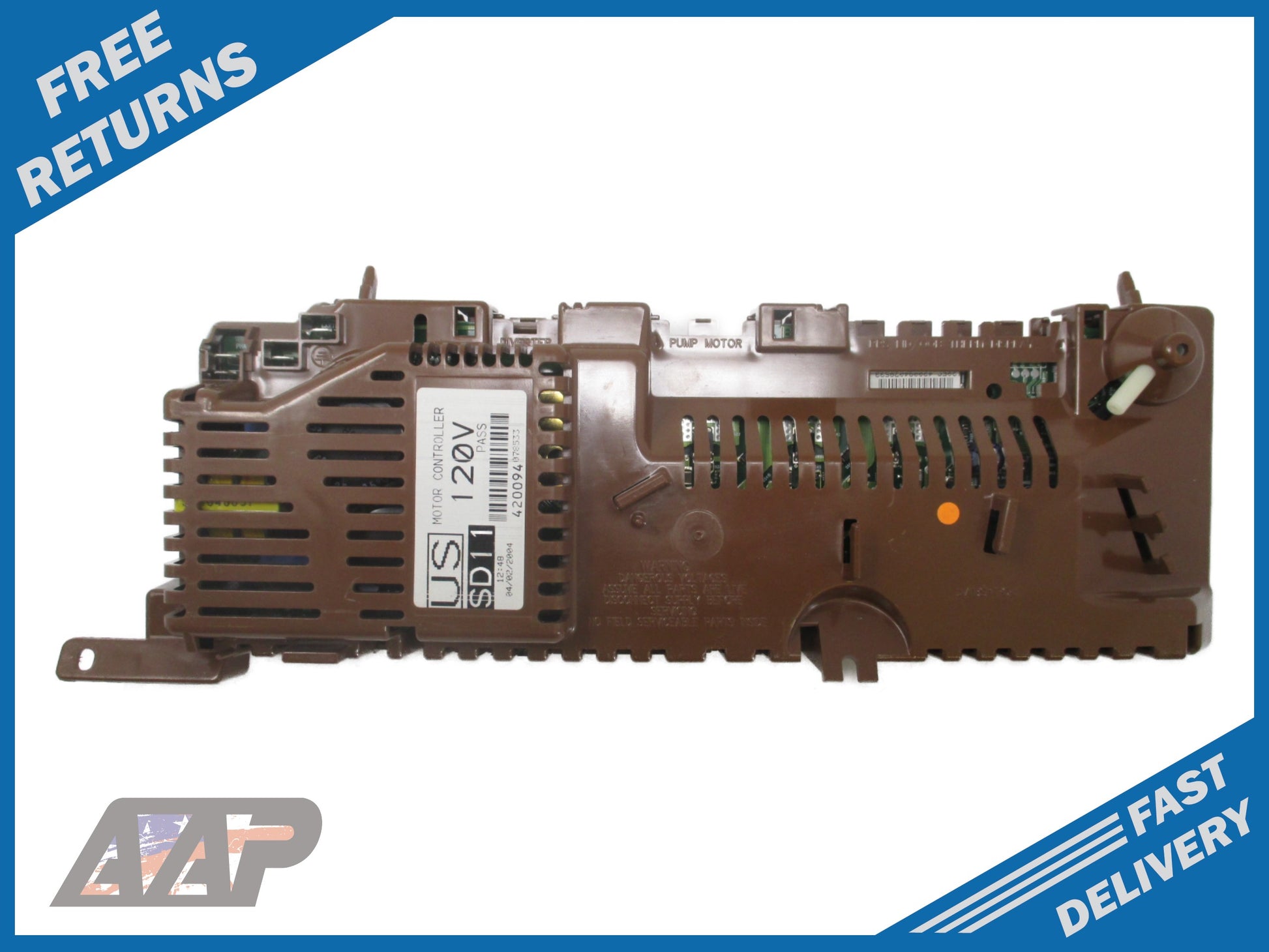

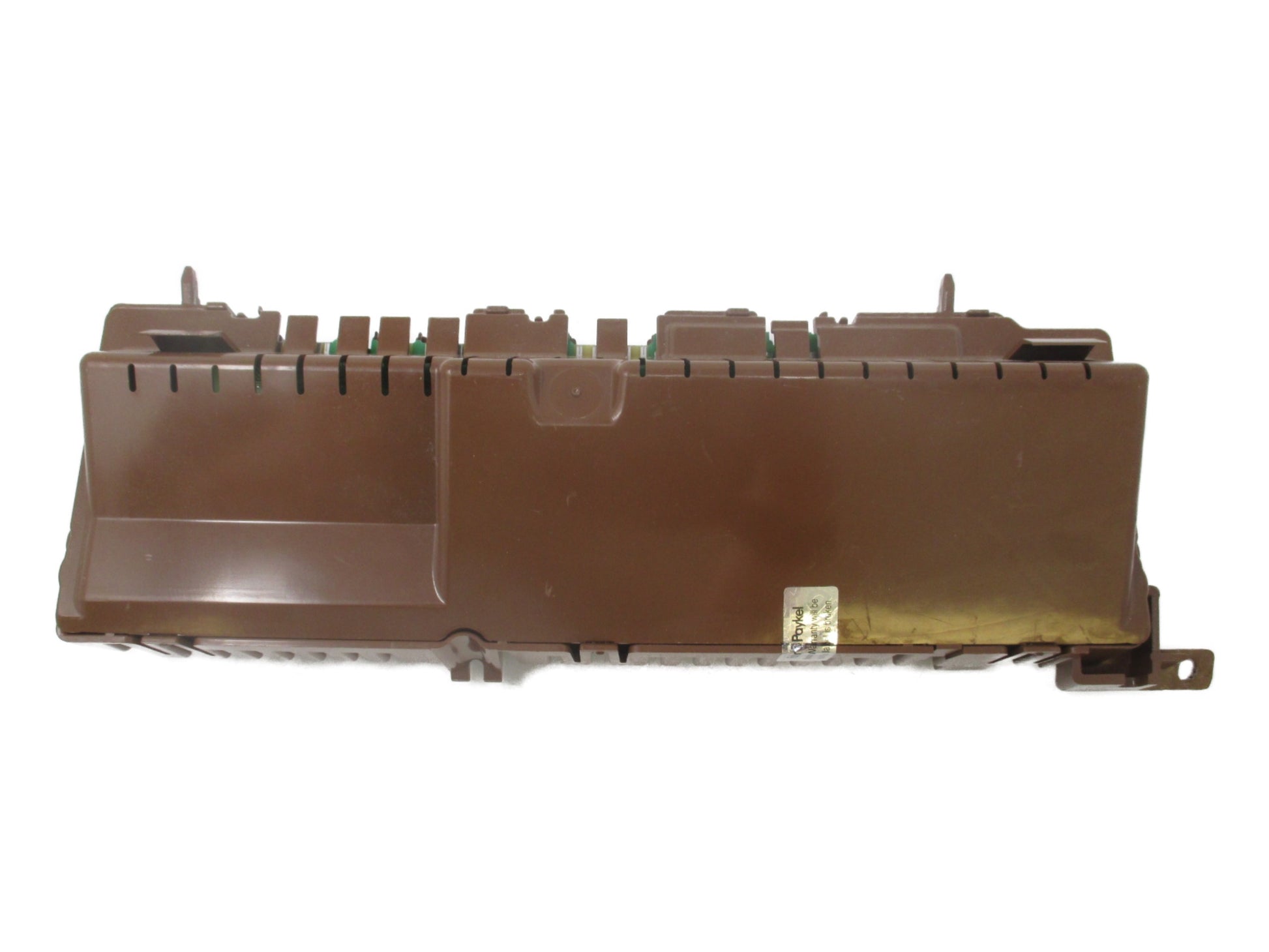

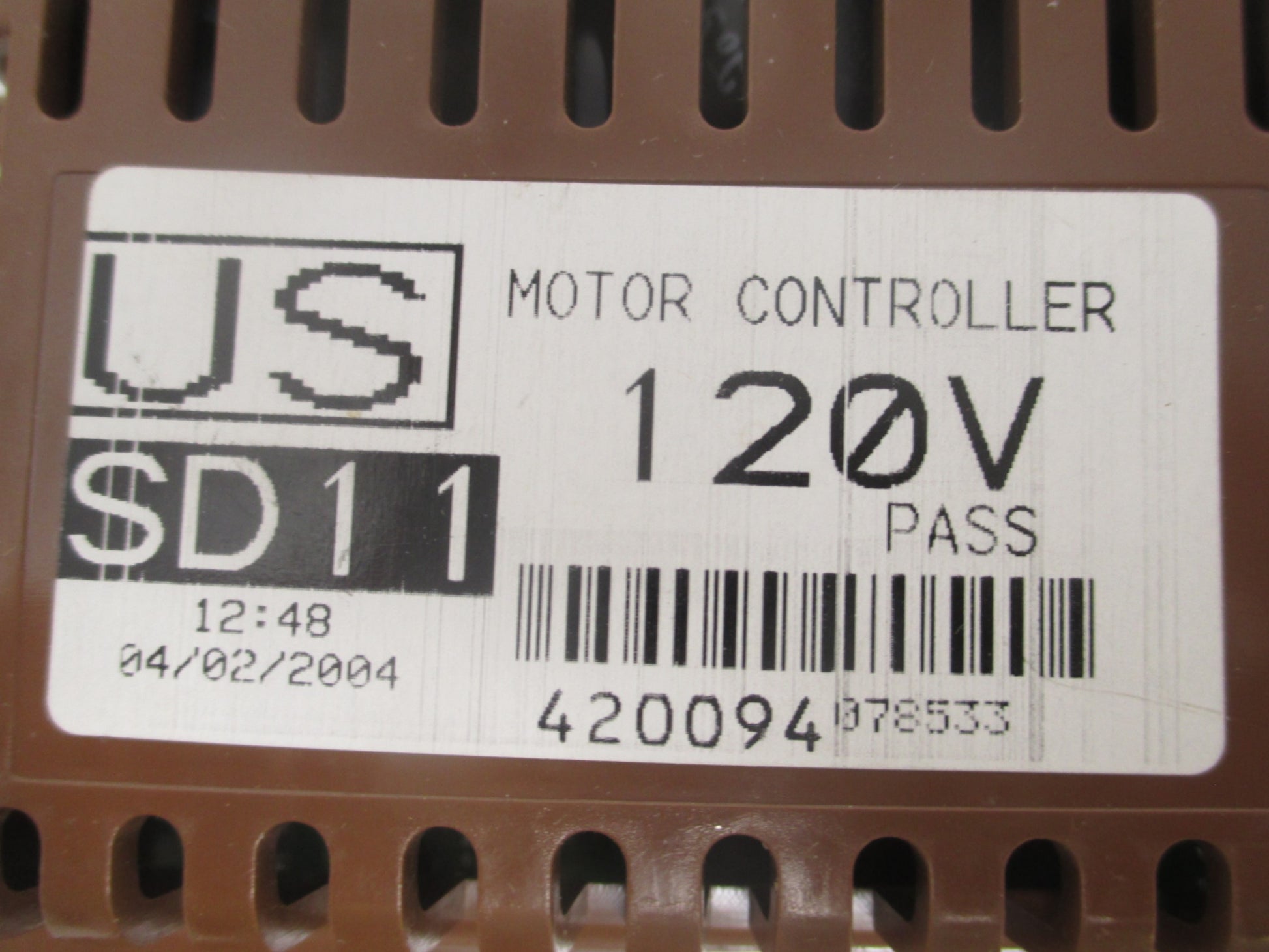

420094 Fisher & Paykel Main Control for GWL11US & IWL12US & Fuse Kit
Transfering the yellow water valve wiring harness:
https://t2m.io/420094wire
GWL11US Service Tech Sheet:
https://t2m.io/420600
GWL11US Full Service Manual:
https://t2m.io/517766
GWL11 / IWL12 Service Manual:
https://t2m.io/517766B
GWL11US Parts Manual:
https://t2m.io/96151-B
For some models you will need to reset the "Load Size" (Error Code 9 after replacing the control)
For IWL12: To get to the machine size menu you might have to use the "fabric care" button and "power" button.
Before you order or replace the controller on your Fisher-Paykel washer, please read this article over carefully!
Machine controls are often replaced, only to fail again shortly after replacement. The reason for this is because there was an underlying condition that caused the control to fail in the first place.

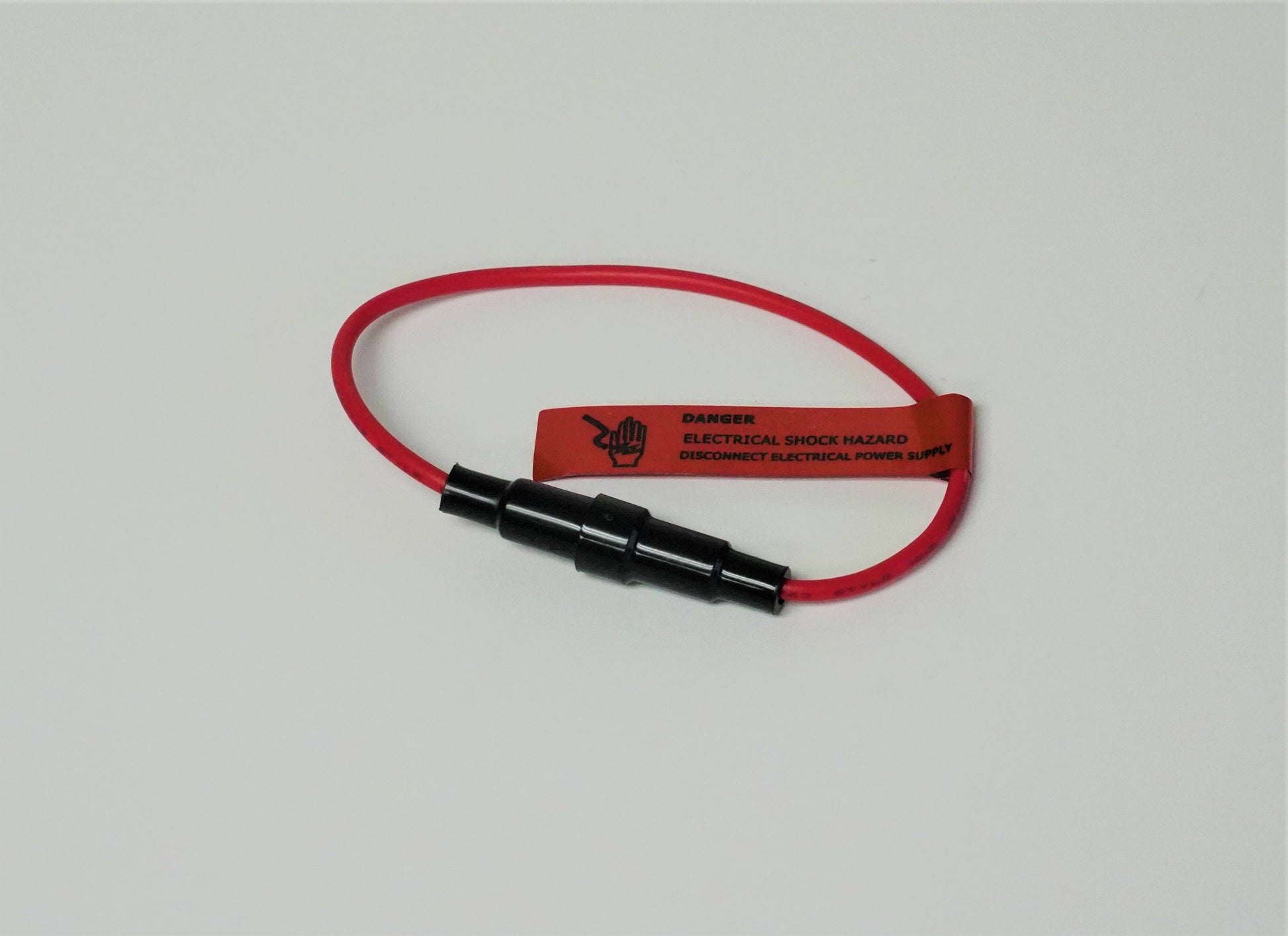

Wet or shorted water pump (Part number 420325P). We do not sell the water pump. We include a fuse kit WHICH MUST BE INSTALLED when you install the control. The fuse kit protects the control from damage that could be caused by a bad water pump.
Before you replace your machine control, tip the machine back and check the condition of the WATER PUMP. Look for signs of rust, leakage or seepage thru the seal, and also look for a burnt or discolored coil on the pump's motor. The pump may even smell "burnt" to you. If you install a new control in a machine with a shorted or leaky water pump, your new control will fail again, perhaps as soon as the first load of wash. If your pump is bad, it MUST be replaced along with the machine control.
https://t2m.io/420094wire
GWL11US Service Tech Sheet:
https://t2m.io/420600
GWL11US Full Service Manual:
https://t2m.io/517766
GWL11 / IWL12 Service Manual:
https://t2m.io/517766B
GWL11US Parts Manual:
https://t2m.io/96151-B
For some models you will need to reset the "Load Size" (Error Code 9 after replacing the control)
For IWL12: To get to the machine size menu you might have to use the "fabric care" button and "power" button.
Before you order or replace the controller on your Fisher-Paykel washer, please read this article over carefully!
Machine controls are often replaced, only to fail again shortly after replacement. The reason for this is because there was an underlying condition that caused the control to fail in the first place.
Wet or shorted water pump (Part number 420325P). We do not sell the water pump. We include a fuse kit WHICH MUST BE INSTALLED when you install the control. The fuse kit protects the control from damage that could be caused by a bad water pump.
Before you replace your machine control, tip the machine back and check the condition of the WATER PUMP. Look for signs of rust, leakage or seepage thru the seal, and also look for a burnt or discolored coil on the pump's motor. The pump may even smell "burnt" to you. If you install a new control in a machine with a shorted or leaky water pump, your new control will fail again, perhaps as soon as the first load of wash. If your pump is bad, it MUST be replaced along with the machine control.
